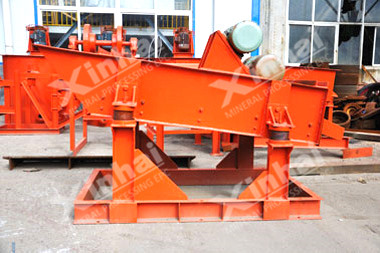

[Introduction]: A vibrating screen that screen box takes reciprocating movement along the directional linear, is used for fine screening.
[Capacity]: 20～300t/h
[Improvement]: Screen angle is adjustable
Linear vibrating screen is applied in dewatering, de-mud, de-liquid and de-heavy medium
| Model | Screening Area (m2) | Amplitude (mm) | Motor Model | Motor Power (kW) | Rotating Speed (r/min) |
| DZS0412 | 0.4X1.2 | 2~4 | YZS-3-6 | 0.25 | 970 |
| DZS0415 | 0.4X1.5 | ||||
| DZS0612 | 0.6X1.2 | ||||
| DZS0718 | 0.7X1.8 | YZO-10-6 | 0.75 | 960 | |
| DZS0816 | 0.8X1.6 | ||||
| DZS0912 | 0.9X1.2 | ||||
| DZS0918 | 0.9 X 1.8 | YZU-10-6 | 0.75 | ||
| DZS1018 | 1.0X1.8 | 4~6 | YZU-16-6 | 1.1 | 950 |
| DZS1020 | 1.0X2.0 | 3~5 | YZO-20-6 | 2 | |
| DZS1225 | 1.25X2.5 | YZU-16-6 | 1.1 | ||
| DZS1530 | 1.5X3.0 | YZU-20-6B | 1.5 | 960 | |
| 2DZS1530 | 1.5X3.0 | YZO-20-6 | 2 | 950 | |
| DZS1536 | 1.5X3.6 | YZU-20-6B | 1.5 | 960 | |
| 2DZS0918 | 0.9 X 1.8 | 4~6 | YZU-25-6B | 1.5 | 960 |
| 2DZS1018 | 1.0 X 1.8 | 2~4 | YZU-20-6B | 1.5 | 960 |
