Auto Centering Vibrating Screen

Auto Centering Vibrating Screen
Product Introduction

A traditional and widely using vibrating screen



Product Improvements

Elastic location limit part is made of Xinhai wear-resistant rubber

Adopting the new patent technology: a seat type vibrating screen lifting device, Patent No. 201120562516.7

♦ Advantages

Large amplitude, high screening efficiency

Xinhai wear-resistant screen mesh, the service life is 3-10 times longer than steel’s, and 2 times than PU’s

Long service life, low noise and convenient maintenance

The two types of vibrating screen, seat type and hanging type

♦ Working Feature

Auto centering vibrating screen is driven by the vibrator with eccentric device

The characteristics of the vibrating screen as follow:

The materials on screen achieve loosing and stratification

The counterweight of vibrating screen can be adjusted, and the screen amplitude can be adjusted according to the production requirement

The feeding changes, the amplitude changes. Small feeding brings severe amplitude and vibration; much feeding brings smaller amplitude. Change of feeding will affect the "dynamic balance", and the belt pulley center had some vibration;

It is suitable for screening medium and fine particle rather than coarse materials.

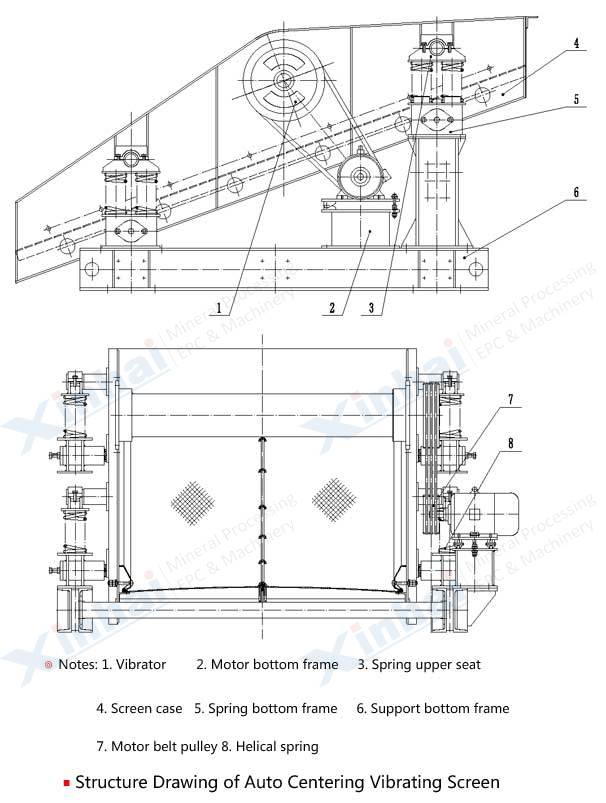

♦ Product Structure

Main shaft


Screen frame

Spring suspension device

Eccentric weight wheel

Eccentric shaft

Belt pulley

♦ Application

The application range of auto centering vibrating screen: mines, coal, metallurgy, construction materials, chemistry industry
