Spring Cone Crusher
Product Introduction
Low power consumption and high production efficiency
Production Capacity
5～750t/h
Product improvement
The movable cone swings close to discharge opening of crushing cavity, which intersects an equal parallel strip between them to make end products granularity. Adopting dry oil and water sealing avoids the dust entering.
♦ Advantages
Continuous rotation of the operated cone body and high productivity
Easy to press, impact and crush and low power consumption
Even particle size of products and uniformly surface wear of movable cone

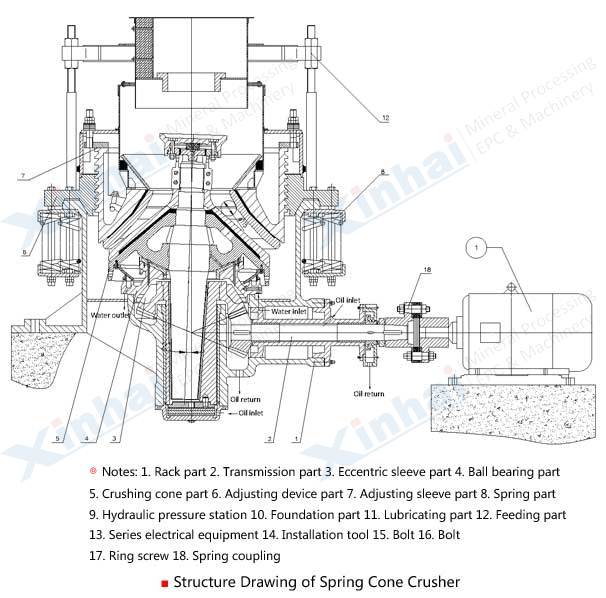

Simple structure: frame, horizontal axis, movable cone, balance wheel, eccentric bushing, upper crushing wall (fixed cone), down crushing wall (movable cone), fluid coupling, lubrication system, hydraulic system, control system, etc.
The movable cone swings close to discharge opening of crushing cavity, which intersects an equal parallel strip between them to make end products granularity. The feed opening is not large, which can deal with the primary crushed materials.
This kind of cone crusher adopts dry oil and water sealing avoiding dust entering and keeping clean.
♦ Application
This kind of cone crusher is widely applied in metallurgical, construction, road building, chemical and phosphatic industry. It is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, grit stone, etc.
Products Detailed Parameters>>
