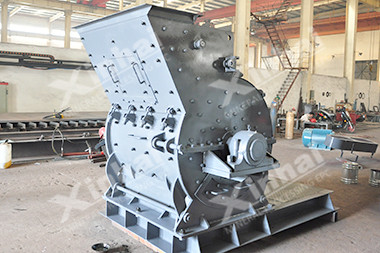

Hammer Crusher

[Introduction]: Hammer crusher is a kind of equipment with high production capacity, large reduction ratio and high crushing efficiency

[Capacity]: 5～75t/h

[Improvement]: High-speed hammer impacts materials to crush materials. There are two ways of crushing (Wet and dry)

Get Quote

Online Inquiry

Leave Message

Send Email

ADVANTAGES

Simple structure
Large reduction ratio
High production efficiency
Suitable hammer crusher price
Variable hammer crusher specification

PRODUCT STRUCTURE

Hammer crusher is widely used in the industry of mining, building materials, chemical industry, metallurgies, coal and cement, and so on. It is also call ring hammer crusher

TECHNICAL PARAMETERS

Model	Rotation Diameter (mm)	Discharge Size (mm)	Max. Feed Size (mm)	Capacity (t/h)	Power (kW)
PC-φ600X400	φ600	10 〜30	100	12 〜15	18.5
PC-φ600X600	φ600	10 〜30	100	12 〜18	30
PC-φ800X700	φ800	10 〜45	200	13 〜35	37
PC-φ800X800	φ800	10 〜45	200	13 〜40	37
PC-φ1000X1000	φ1000	8〜60	300	30 〜80	55
PC-φ1000X1300	φ1000	8〜60	200	35〜100	110
PC-φ1000X1500	φ1000	8〜60	300	40〜100	132
PC-φ1200X1600	φ1200	10 〜70	500	100〜250	160
