Efficient Improved Thickener

Efficient Improved Thickener

A new efficient thickener independently developed by Xinhai



Product improvement

This thickener is patent product of Xinhai, patent . After improvement, the capacity becomes larger, overflow with low turbidity and discharge with high concentration

♦  Advantages

Out overflow weir instead of inner overflow weir increases the sedimentation area and not easy to block Oblique feeding instead of horizontal feeding solves the blockage problemA tranquil flow device reduces material flow rate, so that the overflow becomes more uniform with lower turbidity.

♦ Work Principle

The vertical axis rotates driven by motor, and pulp by feeding device flows into the tank center feed mixing barrel.Solid material in the bottom of the tank by the scraper moves out of center; clarified overflow through the tranquil flow device flows out from the ring external overflow weir.

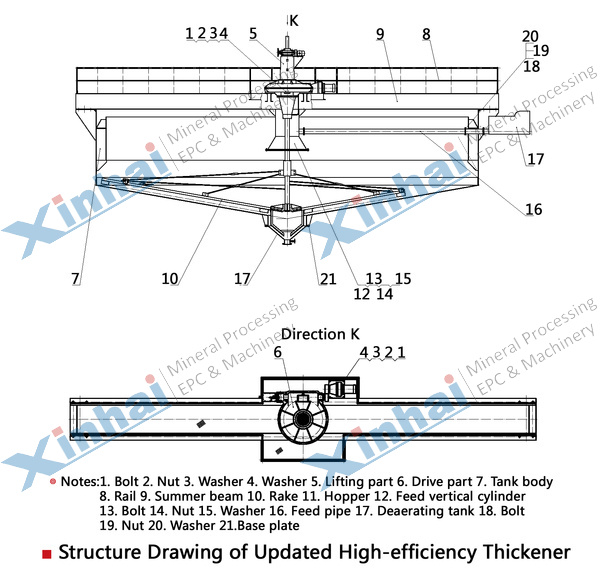

♦  Product Structure


Deaerating tank

Feed mixing barrel

Motor driven device

Rake lifting device

Tranquil flow device

Overflow weir

Rake frame

Feeding devide

Vertical axis

♦  Product Application

It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc.
