Peripheral Transmission Thickener

Peripheral Transmission Thickener

Peripheral transmission thickener has two kinds, peripheral roller transmission and peripheral gear transmission



Product Improvement

Single row cross column rotary support or single row four point contact ball rotary support, collector device with good insulation, exposed rotary parts with light shield

♦  Advantages

Unique bridge design, excellent rigid strength and strong overload capacity Peripheral roller transmission, low energy consumption, stable and reliable operationSimple operation, convenient maintenance and remote control

♦  Product Structure

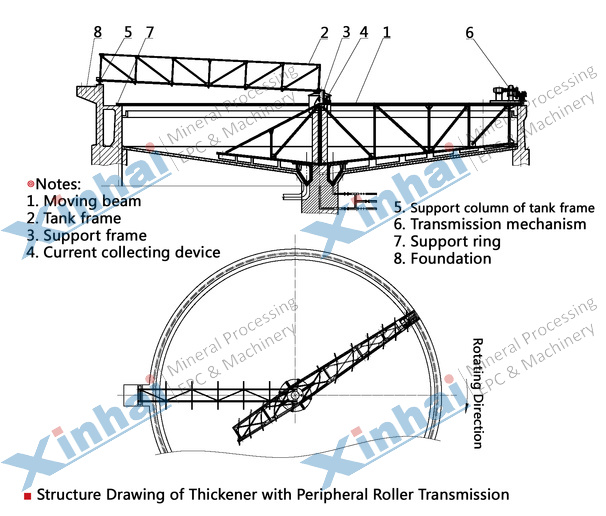

This thickener consists of round thickener and harrow scraping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

♦  Product Application

The machine is suitable for dealing with large capacity and light density products. Mainly used for condensing concentrate and dewatering the tailings. It can be also used for condensing and cleaning the pulp with solid particles in coal, chemical, building materials and sewage treatment system.

Products Detailed Parameters>>
