Chute Feeder
Product Introduction
A periodic and reciprocating feeding machine for large bulk materials
Capacity
10~90t/h
Product Improvement
According to user requirements, the motor can be changed to the speed adjustment motor to adjust the feeding volume.
♦ Advantages
Simple structure, even feeding, good continues performanceChange and control flow and feeding volume at any timeStable transmission, high efficiencyCompact structure, reasonable designExcellent quality, wide application
♦ Work Principle

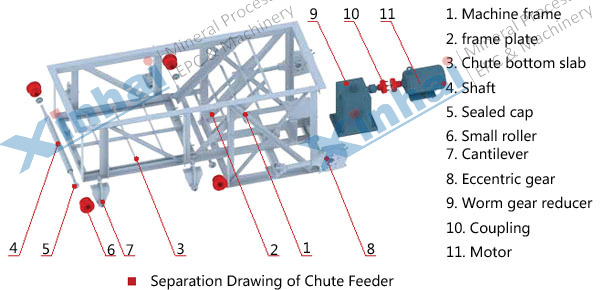

The machine is usually installed underneath the discharging opening of ore bin. Minerals fall on the bushing. The bushing is located at the chute bottom, configured on idler wheel and via eccentric device connected with reducer which is linked to electric motor by coupler. When it works, electric motor drives reducer via coupler; eccentric disk and drain cap which is situated between chute frame bottom and roller begin to do reciprocal and linear motion so as to uniformly feed minerals.
♦ Product Application
The chute feeder is used to convey mineral lump from storage silo to equipment in industries like smelting, mining, chemical, building material, concentrating and coal, etc.
