Plate Feeder

[Introduction]: A feeding machine with impact resistance and large convey capacity

[Capacity]: 15~217m<sup>3</sup>/h

[Improvement]: A reducer with large speed ratio, speed adjustment motor

Get Quote

Online Inquiry

Leave Message

Send Email

ADVANTAGES

Compact structure, reliable quality
Wide application, high efficiency
Advanced technology

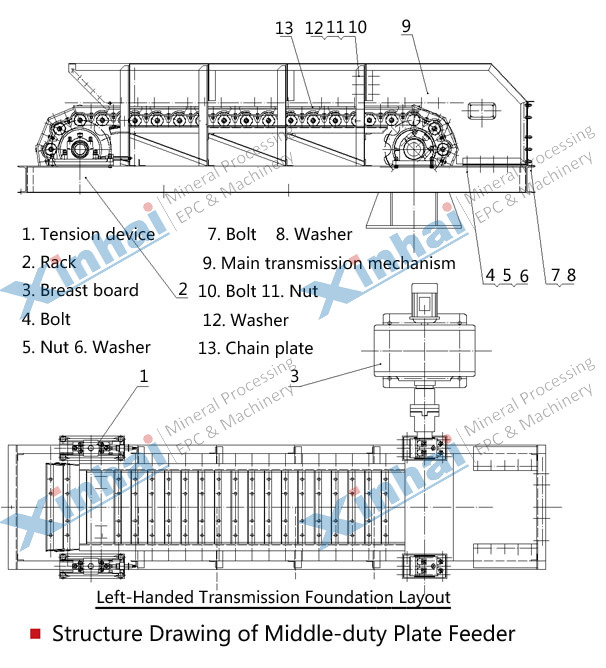

PRODUCT STRUCTURE

Plate Feeder

Plate feeder can deliver bulk materials with particle size ≤160mm. It is used to continuously and uniformly feed minerals to devices like crushing or conveying equipment in nonferrous metals, mining, cement, fertilizer, chemical, metallurgical, paper, mining, dressing, ingredients industries, etc. It's good at feeding the bulk materials whose apparent density of a continuous uniformly no more than 12400kg/m3, block weight not exceeding 140kg, temperature is not higher than 140℃.

TECHNICAL PARAMETERS

Model	Chain Plate			Feed Size (mm)	Capacity (m3/h)	Motor		Overall Dimension (LXWXH) (mm)	Weight (kg)
Model	Width (mm)	Center Distance of Chain Wheel (mm)	Speed (m/s)	Feed Size (mm)	Capacity (m3/h)	Model	Power (kW)	Overall Dimension (LXWXH) (mm)	Weight (kg)
GBH80-2.2	800	2200	0.01 ~0.053	≤300	15 ~91	Y132M-4	7.5	3840X2850X1185	3722
GBH80-3		3000				XWED106-385-4	4	4868X2705X1060	4014
GBH80-4		4000				Y132M-4		5640X2986X1185	5087
GBH80-5.8		5800	0.18	≤300	15 ~91	XWED7.5-8215A-231	7.5	7760x2823.5x1321	6526.7
GBH100-1.6	1000	1600	≤0.15	≤350	22~131	Y160M-6	7.5	3240X3026X1235	3981
GBH100-3		3000	≤0.15		22~131	Y160M-6		4640X3114X1235	4548
GBH100-4		4000	0.01 ~0.053		22~131	XWED106-385-4	4	5648x2890x1160	5086
GBH120-1.8	1200	1800	≤0.15	300-400	35~217	Y160M-6	7.5	3440X3314X1235	3965
GBH120-2.2		2200						3840X3314X1285	4238
GBH120-2.6		2600						4240X3314X1285	4572
GBH120-3		3000				XWED7.5-8215A-273		4960X3150X1434	4886(Exclude Reducer)
GBH120-4		4000				Y160M-6		5640X3402.5X1285	6100
GBH120-4.5		4500				XWED7.5-8215A-273		6460X3150X1434	6350.6 (Exclude Reducer)
GBH120-6		6000		300-400	35~217	XWED11-8225B-273	11	7960x3242x1434	8210
