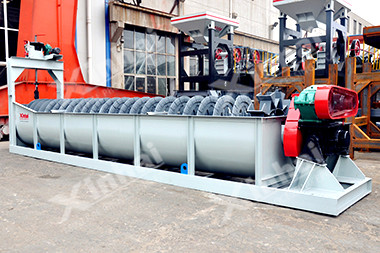

Spiral Classifier

[Introduction]: Classifying equipment takes use of the different sedimentation speed of the solid particle in slurry.

[Capacity]: 10～1785 t/d

[Improvement]: An automatic elevating apparatus is added to the discharge opening. The scoop in ball mill is eliminated bringing more stable operation.

Get Quote

Online Inquiry

Leave Message

Send Email

TECHNICAL PARAMETERS

Type	Model	Rotating Speed of Spiral (r/min)	Capacity of Sand Return (t/d)	Capacity of Overflow (t/d)	Spiral Diameter (mm)	Spiral Length (mm)	Slope of Water Tank	Drive Motor Model	Drive Motor Power (kW)	Lifting Motor Model	Lifting Motor Power (kW)	Weight (kg)
Single Spiral Classifier	FLG-300	7.7	30 ~80	10-30	Φ300	3900	14 ~18	Y100L1-4	2.2	Manualdriven	—	668
	FLG-500	8	145~260	21-32	Φ500	4390		Y112M-6	2.2			1600
	FLG-750	7.8	256~654	31-65	Φ750	5500		Y132S-6	3			2716
	FLG-1000	6.7	473~1026	85	Φ1000	6556		Y132M2-6	5.5			4000
	FLG-1200	5,6,7	1145~1600	150	Φ1200	6500		Y132M2-6	5.5	Y90L-4	1.5	7943
	FLG-1500	2.5,4,6	1140~2740	235	Φ1500	8265		Y160M-6	7.5	Y100L1-4	2.2	11827
	FLG-2000	3.6,5.5	3890~5940	400	Φ2000	8700		Y160L-6/4	11; 15	Y100L2-4	3	20814
	FLG-2400	3.6	6800	580	Φ2400	9130		Y200L2-6	22	Y112M-4	4	24194
	FLG-3000	3.2	11625	890	Φ3000	12500		Y200L-4	30	Y112M-4	4	42188
Double Spirals Classifier	2FLG-1200	5,6,7	2340~3200	310	Φ1200	6500		Y132M2-6	5.5X2	Y90L1-4	1.5X2	15840
	2FLG-1500	2.5,4,6	2280~5480	470	Φ1500	8230		Y160M-6	7.5X2	Y100L1-4	2.2X2	22903
	2FLG-2000	3.6,5.5	7780~11880	800	Φ2000	8400		Y160L-4	15X2	Y100L2-4	3.0X2	34621
	2FLG-2400	3.63	13600	1160	Φ2400	9130		Y200L2-6	22X2	Y112M-4	4X2	42460
	2FLG-3000	3.2	23300	1785	Φ3000	12500		Y200L-4	30X2	Y112M-4	4.0X2	73030
