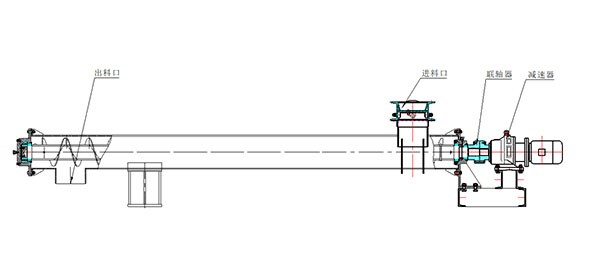

[Introduction]: A transportation equipment that uses the driving device to drive the screw and move the material to achieve the purpose of transportation.
[Capacity]: 3-139t/h
[Improvement]: Xinhai screw conveyor can be customized according to actual working conditions and customer requirements.
Xinhai Mining provided the mineral processing EPC+M+O service for a gold mine tailings cyanide removal project in Mongolia. In the stage of material transportation, Xinhai Mining customized the belt conveyor and screw conveyor two kinds of conveying equipment for this project. Among them, the screw conveyor has the good and reliable working state, easy to central loading and unloading. Besides, the transport direction of spiral conveyor can be reverse, or opposite at the same time, which greatly improved the transportation efficiency of materials.
| Screw dia (mm) |
Conveying temperature (℃) |
Installation angle | Coal fines | Soda | Cement | |||
| Maximum revolution of the screw axis(rpm) | Maximum throughput(tph) | Maximum revolution of the screw axis(rpm) | Maximum throughput(tph) | Maximum revolution of the screw axis(rpm) | Maximum throughput(tph) | |||
| GX150 | ≤200 | ≤20° | 190 | 4.5 | 120 | 3 | 90 | 4.1 |
| GX200 | 150 | 8.5 | 120 | 6.7 | 75 | 7.9 | ||
| GX250 | 150 | 16.5 | 90 | 10.7 | 75 | 15.6 | ||
| GX300 | 120 | 23.3 | 90 | 17.7 | 60 | 21.2 | ||
| GX400 | 120 | 54 | 75 | 35.5 | 60 | 51 | ||
| GX500 | 90 | 79 | 75 | 70 | 60 | 85 | ||
| GX600 | 90 | 139 | 60 | 97 | 45 | 134 | ||
