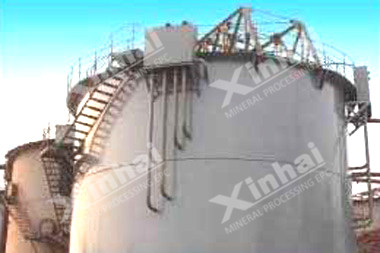

A machine for solid-liquid separation of gold leaching liquid
1、Countercurrent washing, large capacity and high washing efficiency
2、Small area taken
3、Stable production and convenient operation
The continuous ore discharge method can reduce the multiple cycle of liquid gold, while extending the time of pulp staying in the thickener to improve the leaching rate; Countercurrent washing, large capacity and high washing efficiency Small area taken, reasonable structure and low cost of operation and maintenance
Ore pulps enter into tank and then free settle in rake zone where ore pulps are compressed by scraper and moved by rake toward the discharge opening located in tank center through which ore pulps are discharged to next tank. Via distributing box, clear water enters the lowest layer to scrub minerals. After that, overflow of the lowest layer comes back to distributing box to scrub minerals of upper layer. Overflow of first layer is discharged through overflow weir; minerals----which are scrubbed for three times----are discharged from bottom end.
It is mainly used to countercurrent scrubbing of gold cyaniding process. It is also applicable to scrubbing and dehydration in wet metallurgy, light industry and chemical industry.
